Tone Up, 250K Volume with treble bleed, , Tone Control and Gold Plated Jack Socket "Tele" Circuit
Tone Up, 250K Volume with treble bleed, , Tone Control and Gold Plated Jack Socket "Tele" Circuit
SKU:7504
Regular price
£57.49
Regular price
Sale price
£57.49
Unit price
/
per
Tax included.
Couldn't load pickup availability

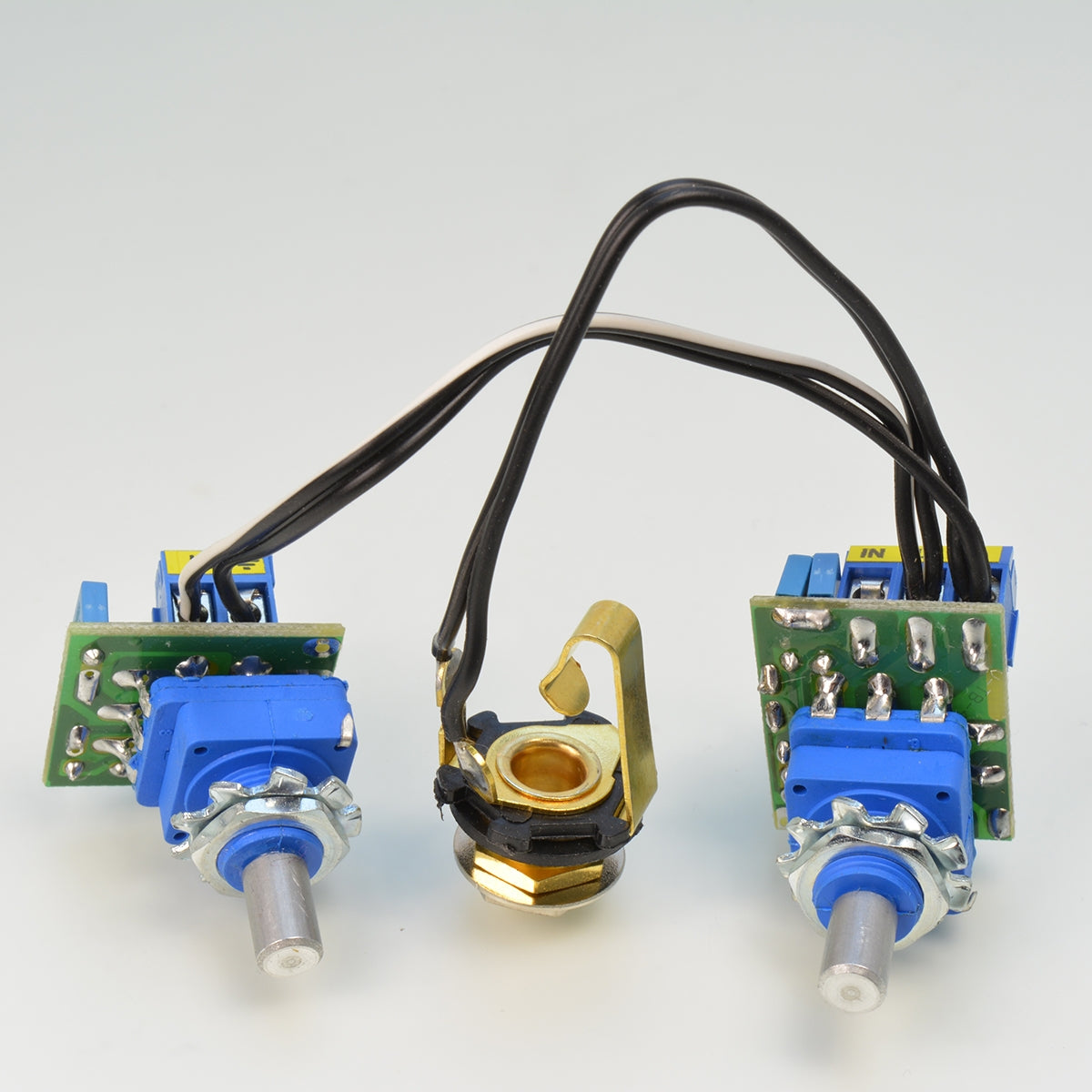

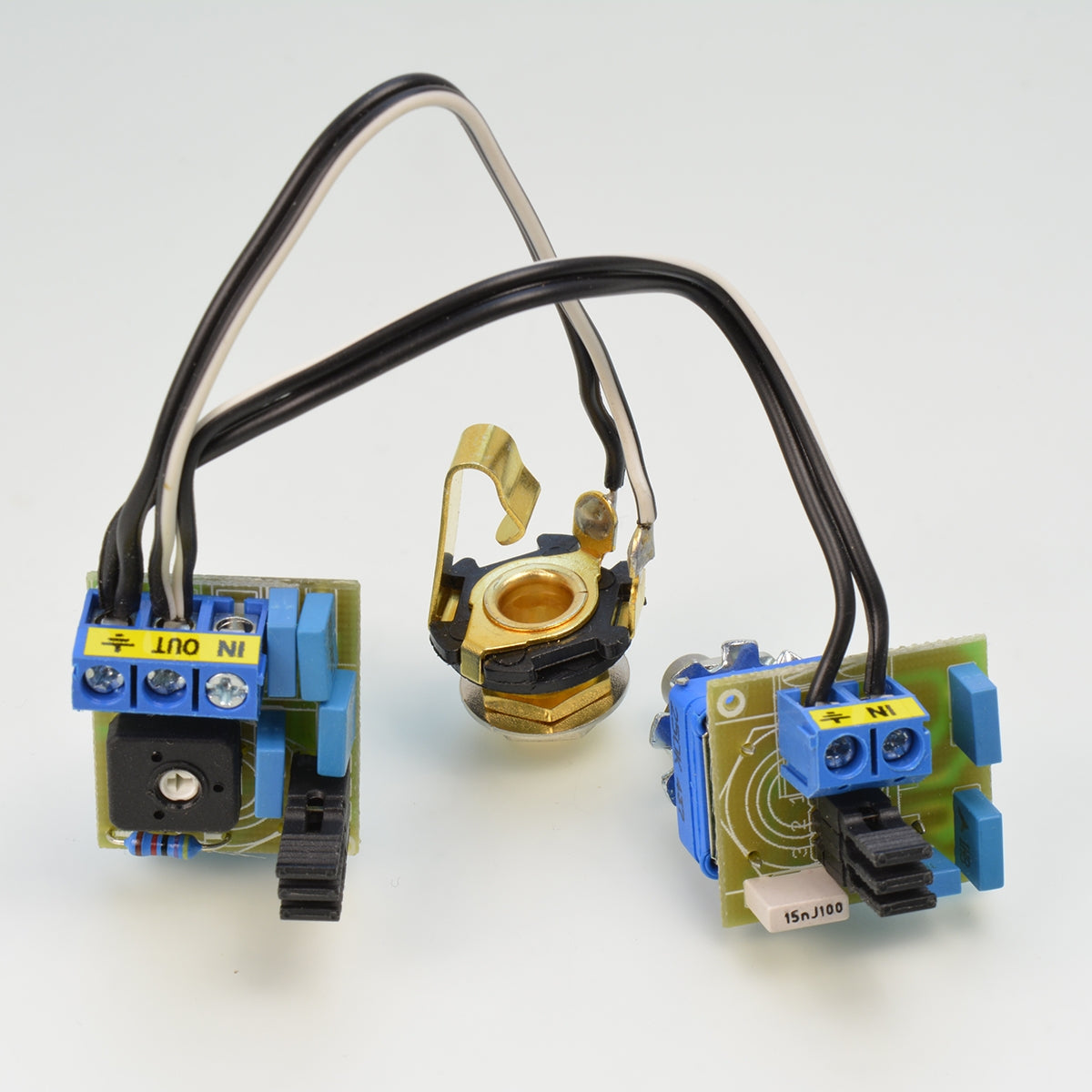

Tone Up, 250K Volume with treble bleed, Tone Control and Gold Plated Jack Socket "Tele" Circuit
- Volume control consists in a 250KΩ volume potentiometer with a special P taper characteristic enlarging the effective zone of rotation when volume adjusting.
The extra feature of this potentiometer is an adjustable parallel treble bleed circuit.
If all 3 jumper switches are in OFF position means there is just a basic capacitor acting on treble
bleed control.
Adding jumper switches to the ON position results in adding capacitance in the parallel treble
bleed circuit - Tone control consists in a 250KΩ tone potentiometer with an option of choosing 4 different capacitors, or the combination of them, with the consequence of different depth of the tone control activity.
